Fold CAM
/
Advanced
/
Required flange length

Required flange length

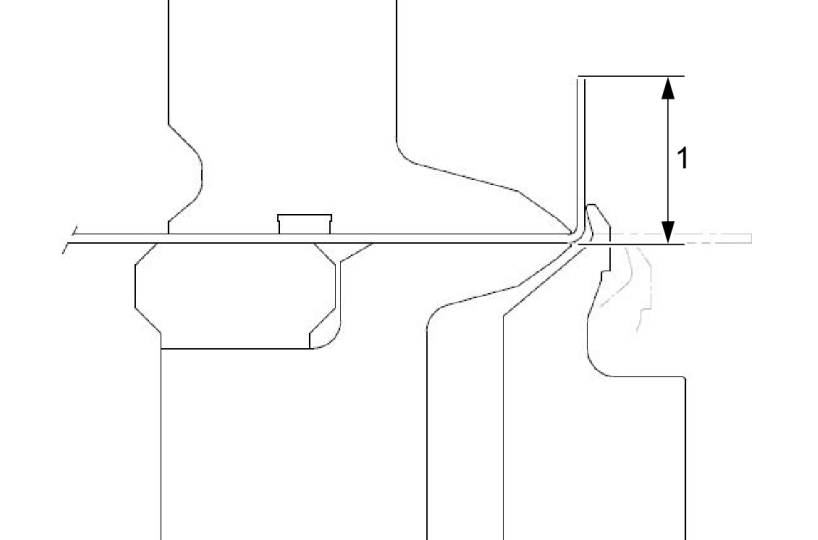

A minimal flange length is needed depending on the thickness of the part.

Flange length

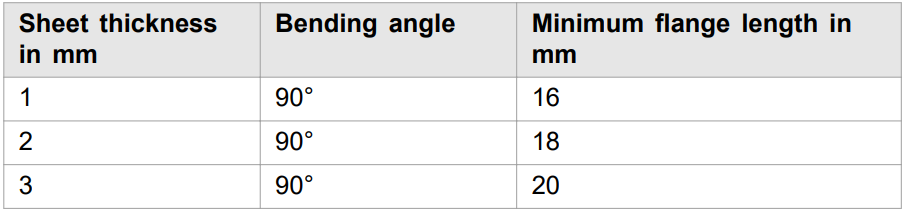

Refer to the following table for applicable flange length:

Flange length
