Corner treatment

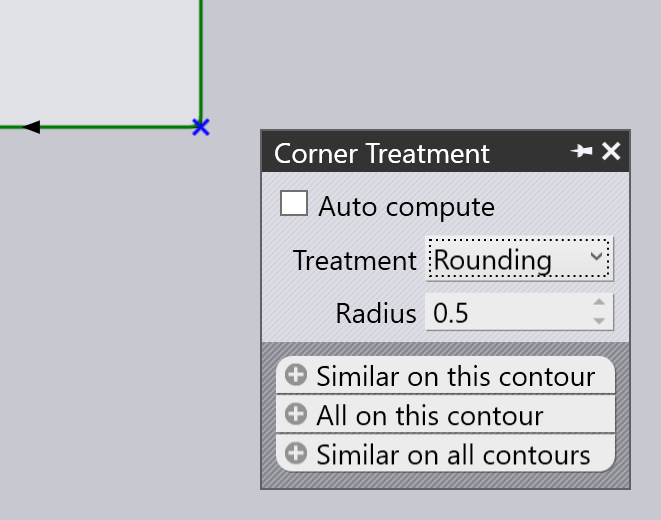

The Corner Treatment panel is used to do various types of special handling at sharp corners of a laser cut. This panel is accessed by clicking near a corner of a laser cut.
-
Auto compute: When the auto-compute setting is turned on (the default), Flux computes a suitable corner processing based on the machine, LTT in use and the angle at the corner. If you want to edit the corner treatment, you need to turn this off.
-
Treatment: The type of corner treatment (see the table below for details). Some of the treatment methods have a parameter (like radius or time that is used to control the corner process).
-
Radius or Time (sec): Some treatments (like Rounding and Looping) need a radius as input. Some like the Dwell and Cool need a delay time.
-
The Selectors at the bottom of this panel can be used to extend the set of selected corners so they can all be edited together:
-
Similar on this contour: If you click on this, all the corners in this contour having a similar angle to the selected one get highlighted with small blue crosses. Then, all the edits you do will be applied to all these corners.[1]
-
All on this contour: Like the selector above, but selects all corners on this contour, regardless of angle.
-
Similar on all contours: Selects all similar corners (same angle) on all the tooled-up contours of the part so they can all be edited in parallel.
-
Treatment methods
The table below shows the different corner treatment methods. The Rounding and Looping methods visibly alter the geometry of the cut, while the other methods add a small icon at the corner to indicate the type of processing that is happening there.
| Treatment | Explanation | Example |
|---|---|---|
Do nothing |
No corner processing performed |
|
Rounding |
Rounds off at the corners |
|
Looping |
Loops at the corners |
|
Dwell |
Dwells at the corners |
|
Cool |
Cools down the laser at the corners |
|
Stop |
Stops at the corner |
|
Slowdown |
Slows down the laser at the corners |
|
