Import assembly

A 3-D assembly file can be imported by clicking Open icon in the command bar.

After a 3-D file is imported:

Select Workflow icon and click the symbol to explode assembly.
Alternatively, use shortcut key X to break up the assembly into individual bending parts.

After an assembly is exploded, a message is displayed indicating the total number of parts found in the assembly along with the part count.

When a part is selected, its quantity is shown.

Figure 1. X1959~6 x 2: (x 2 represents the part count)

The 3-D model is automatically categorized after importing. Different symbols and colors are used to depict these models:

Table 1. 3-D model symbols and types
Symbol	Model	Meaning
	Assembly	Represents a collection of multiple parts grouped together as an assembly.
	Surface model	A surface model contains a group of surfaces connected with each other.Some surface models can be analyzed and converted into metal models.
	Metal model	Represents models with layers and bend sections, all sharing the same sheet thickness. Metal models can be unfolded into a flat pattern or used as the basis for bending operations.
	Laser model	A laser model is a flat part with no bends, requiring only laser cutting or punching operations.
	Tube model	A tube model is generated from an extruded tube section, which may include end cuts, rims, and holes.
	Component	Represents a non-metal part, such as a bolt, nut, or washer. These components are excluded from manufacturing processes in Flux bend and are included only for generating the bill of materials (BOM).

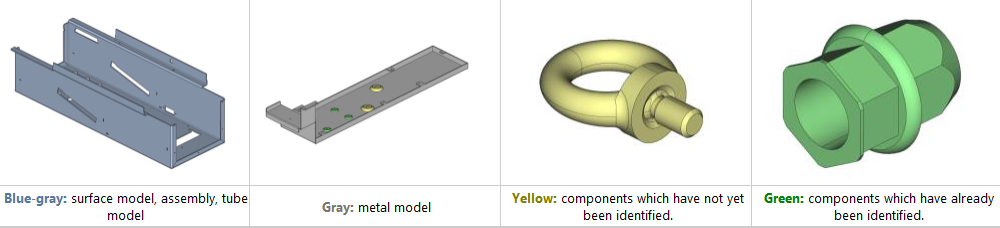

The symbols are displayed in the software next to the file name. Different colors are displayed in the 3D view to categorize the models. The following standard colors are used:
