Withdrawal

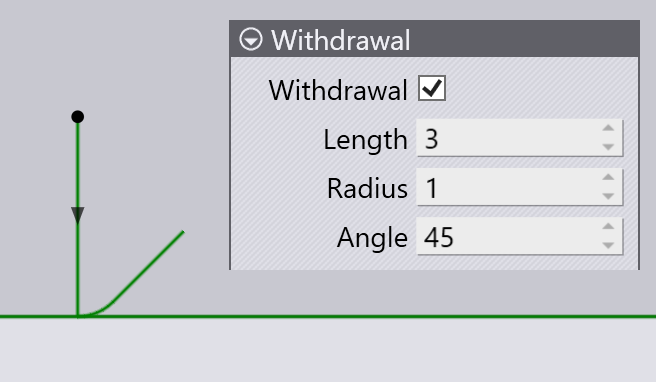

The Withdrawal section of the Laser Cut panel is used to set up the withdrawal geometry for the laser cut.
-
Withdrawal: The withdrawal is optional, and you can use this checkbox to turn the entire withdrawal geometry on or off.
-
Length: The length of the withdrawal segment (this is the length the linear segment would have if the radius were zero).
-
Radius: The blend radius between the linear withdrawal segment and the final segment of the laser cut.
-
Angle: The turn angle between the final segment of the laser cut and the linear withdrawal segment. The larger the angle, the tighter a turn the laser has to make.
